Modulāra CAN / PLIP autosignalizācija
Iebūvēti ultraskaņas sensori
Augstas jaudas sirēna
Divu vadu CAN tīkla interfeis
Instalācijas
laiks |
 |
| Aizsardzība |
 |
| Konforts |
 |
Sirēnas jauda: > 115 dB (A)
Max. patēriņš: < 16 mA
- 20 min
|
Priekšrocības
Sistēma ir izstrādāta, lai būtu saderīga ar plašu automobiļu klāstu, kas ir aprīkoti ar CAN bus tīklu. To ir iespējams izmantot arī automobiļiem bez CAN bus tīkla - PLIP
Data Linker instrumenti un"Antares" programma ļauj signalizāciju pielāgot konkrētam automobīļa modelim.
Pateicoties iespējai signalizāciju pieslēgt pieCAN bus tīkla, tiek samazināts uzstādīšanas laiks.

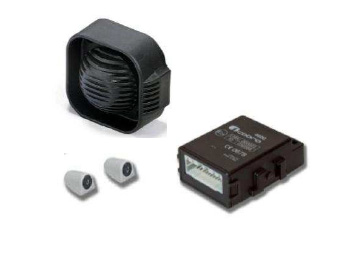

| Komplektācija |
| Vadības bloks ar iebūvētu pieslēgumu ultraskaņas sensoriem |
| Montāžas vadi |
| Augstas jaudas sirēna |
| Avārijas atslēgšanas poga ar gaismas diodi |
| Lietotāja un montāžas instrukcijas |
| |
| Sistēmas ieslēgšana un izslēgšana |
| Ar automobiļa oriģinālo tālvad;ibas pulti |
| Electronic emergency disarming (PIN code by push button): in the event of loss or failure of the radio remote control, the system can be deactivated by entering a PIN code |
| |
| Protection functions |
| Single engine immobilisation: once the system is armed starting becomes impossible |
| “Passive” arming of the immobiliser (programmable): the vehicle engine is immobilised automatically 115 seconds after the ignition has been turned off to arm the system even in the event that you forget to close the car via the remote control |
| “Passive” arming of the complete system (programmable): the system automatically arms about 30 seconds after the ignition has been turned off, even in the event that you forget to set the system via the remote control |
| Automatic re-arming in case of accidental disarming (programmable): if the vehicle is originally equipped with the automatic doors closing the system will also rearm automatically |
| Additional output for siren/car horn (programmable): allows the connection of the original vehicle horn or the connection of an additional siren |
| Perimetric protection by contact (door, bonnet, boot): any attempt to open any doors, boot and bonnet will cause an alarm |
| Ignition lock protection: triggers the alarm if ignition is turned on while the system is armed |
| Built-in pre-set ultrasonic volumetric protection (excludable): no need of any sensitivity adjustment. The volumetric detection can be temporarily switched off in a simple way |
| Audible alarm (high power siren) |
| Visual alarm (flashing of the turn indicators during the alarm-cycle) |
| Anti-hijack function (programmable): the alarm is triggered in the event that the driver is aggressed and the vehicle stolen with the engine running; once ignition is turned off, re-starting becomes impossible |
| |
|
| Product data |
| Nominālais spriegums (VDC): 12 |
| Darba sprieguma robežas (VDC) : 8 – 16 |
Vadības bloka darba temperatūra(°C): - 40 + 85
Sirēnas darba temperatūra (°C): - 40 + 85 |
Sistēmas (bloks + sirēna) strāvas patēriņš:
ieslēgta 7 (mA)
izslēgta 5 (mA) |
| Sirēnas skaņas līmenis (dBA): >115 |
Izmēri (mm):
vadības bloks 91 x 67 x 33
sirēna 67 x 75 x 40 |
Svars (g):
vadības bloks90
sirēna 207 |
| Izgatavots : Itālija |
| Garantija: 24 mēneši |
| |
| Direktīvas |
| ECER116 (security, E marking) |
| ECER10 (electromagnetic compatibility, E marking) |
| 99/5/EC (use of radio spectrum , CЄ marking) |
| |
| Papildus aprīkojums |
| AM5462: mikroviļņu tilpuma sensors |
| AM5452: līmeņa sensors |
| AM2057: trieciena sensors |
| AM8509: divkārš dzinēja bloķētājs |
| AM2980: logu aizvēršanas modulis |
| |
| Comfort functions |
| Alarm memory and diagnostics: in the event that the system is triggered during the driver’s absence, the latter is notified by audible and visual signals upon disarming |
| Check function: during the inhibition time the protection functions can be tested without generating a full alarm cycle |
| Doors closure check: during the inhibition time the system signals if any doors, boot and bonnet have been left opened |
| Exclusion of external optional sensors: the additional sensors can be temporarily switched off in a simple way |
| Garage mode (programmable): to allow the vehicle usage in case of maintenance. All automatic functionalities will be excluded until the engine will have been started for 10 times |
| |
|
|
